HDMI cable has already obtained HDMI ATC Certificate Ver 1.3b and official HDMI adopter.Higher Speed 340MHz (10.2Gbps) to support the demands of future high definition display devices. Support 720p, 1080i, 1080p and max.1440p resolution. Deep Color 30-bit, 36-bit and 48-bit (RGB or YCbCr) color depths. Support Broader Color Space "xvYCC" and Lip Sync 24K gold-plated connectors ensure superior signal transfer. 4 screened twisted pairs of OFC stranded conductors with foam PE insulation layer, improve the high frequency response for wide-bandwidth and efficient signal transfer.
Working temperature : -25°C to 80°C 100% open & short test and contact resistance 3max.
Hi-pot : DC 300v 10ms.
Insulation resistance : 10mΩ min

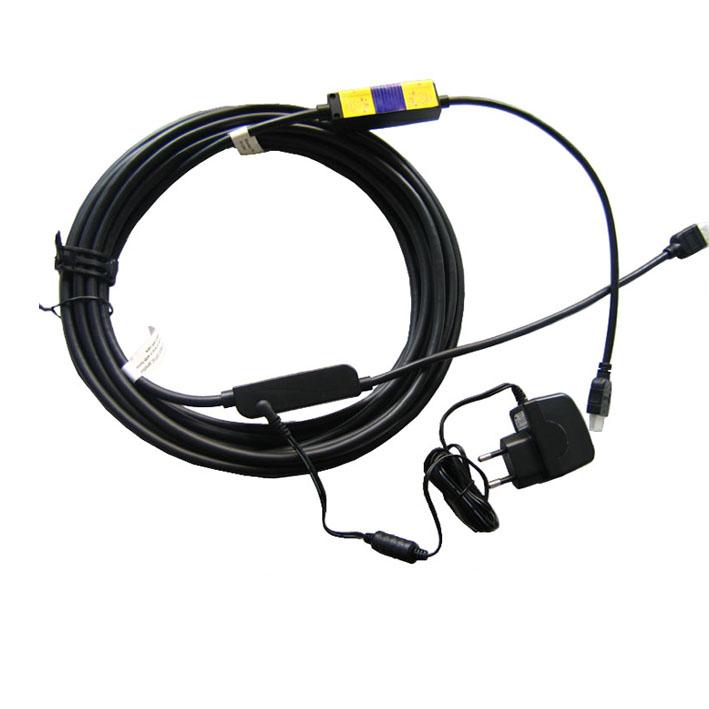

HDMI optical fiber long distance Model : HQ2000 -HDMI ATC 1.2a
Certificate Length : 30M/50M/100M
Supports: all HD standards up to 1080p
Supports：all VESA resolutions up to WUXGA (1920x1200), at 60Hz refresh rate with 1 pixel/clock mode

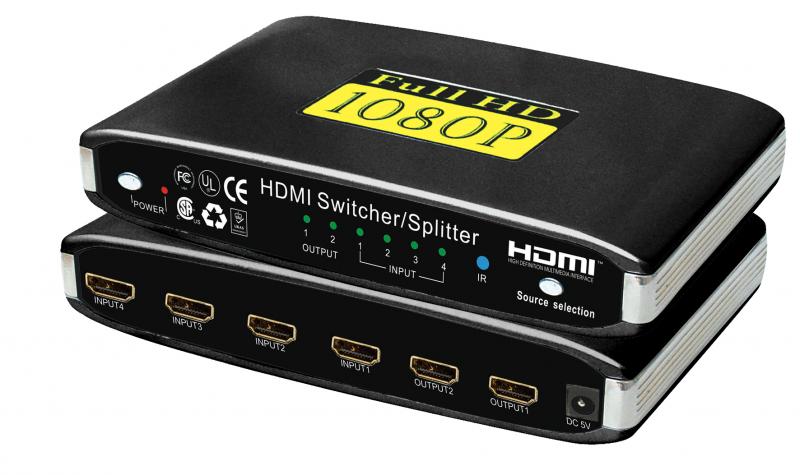

HDMI Switch (3x1, 5x1, 7x1, 4x2) Model : WHA4x2
Maintains 720p, 1080i and 1080p resolutions
Maintains highest HDMI single link video resolution
Maintains highest digital audio signal Supports HDCP compliant

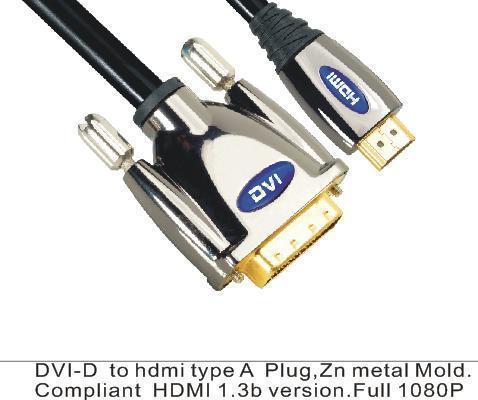

HDMI To DVI-D Cable Model : WHAD01
HDMI ATC 1.2a Certificate AWG : 26, 28, 30 HDMI Cable with Dual Ferrites Model : WHA2108 -HDMI ATC 1.3b Certificate AWG : 26, 28, 30

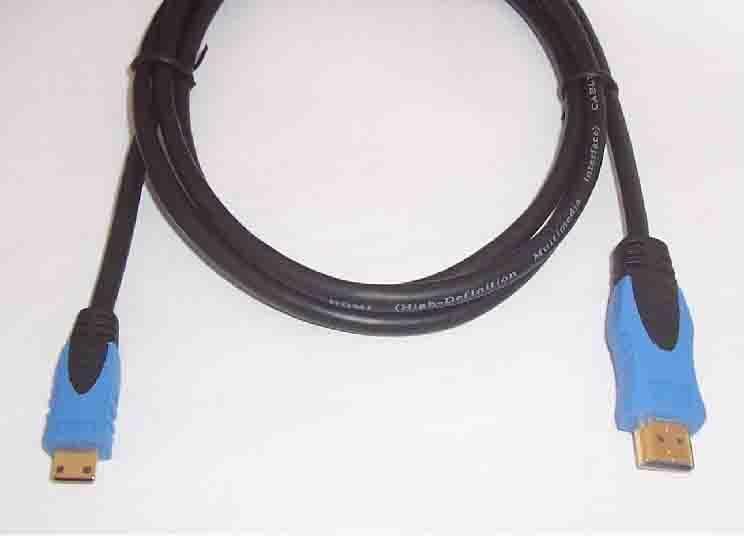

HDMI Cable Type A to Type C Model : WHAC01

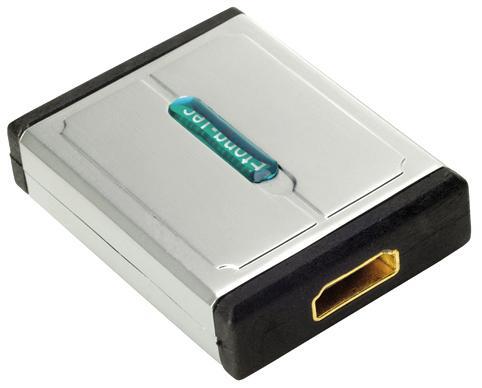

HDMI ATC 1.3b Certificate AWG : 26, 28, 30 HDMI Extender Model :WHA1102
Metal shell hdmi repeater / extender -Max repeat hdmi cable length 50m-Compliant with hdmi 1.3b, full 1080p
